CDS Hooks Technical Example

Relevant roles:
  • Software Engineer

This module is meant for technical users who are interested understanding the architecture of CDS Hooks by reviewing an example CDS Service. Please be familiar with SMART on FHIR and read the CDS Hooks introduction before continuing.

1 Example Overview: Facilitating Retinoblastoma Research

In this scenario, clinical care teams are prompted to offer enrollment into a research recruitment registry to parents and guardians of retinoblastoma patients who are interested in participating in clinical trials.

CDS Hooks will enable integrated, automated prompts. When a healthcare provider opens the chart of a patient diagnosed with retinoblastoma, a decision support card containing recruitment registry information and a link to an enrollment website will appear. This application will guide interested patient families through the process of signing up for inclusion in the research recruitment registry.

We will then consider the case where there is a prioritized clinical trial needing to recruit retinoblastoma patients within a certain age range, and demonstrate how CDS Hooks can be used to leverage patient age data from the EHR to more selectively identify patients meeting the desired eligibility criteria.

1.1 Problem Statement

Retinoblastoma is a rare pediatric cancer, making it difficult to recruit enough patients for research. Without automated prompts in clinical workflows, enrollment rates may be low, impacting the development of robust registries and research studies.

1.2 Objective

Learn how to implement CDS Hooks to trigger clinical decision support (CDS) interventions that leverage the patient-view hook to appropriately launch a SMART on FHIR app within a clinician’s EHR workflow.

2 Synthetic Data Sets

You will use synthetic FHIR data sets that include:

  • Pediatric patients diagnosed with retinoblastoma.
  • Pediatric patients without retinoblastoma.

The data for this use case can be accessed here in two different formats:

  1. JSON files containing FHIR Bundles, which can be used to manually populate a test FHIR server.
  2. A pre-loaded HAPI FHIR server database, which can be run using the HAPI FHIR server instructions in this README.

3 Exercise Steps

  1. Create a CDS Service:

    • Set up a CDS service that is called when the patient-view hook fires, triggered whenever a healthcare provider accesses a patient’s EHR record.
    • Configure the CDS service to filter patients and identify those diagnosed with retinoblastoma by examining relevant FHIR resources, such as Condition resources with retinoblastoma diagnosis codes.
    • Use the prefetch feature in CDS Hooks to load the necessary FHIR resource instances without making a separate request to the FHIR server.

  2. Create CDS Card:

    • Create a link card that provides succinct decision support verbiage, urging the clinician to consider asking the patient’s parents or guardians if they would be interested in enrolling the patient into a research recruitment registry. The card should include a brief description and any relevant details about the registry, and end with a link to enroll in the registry. The enrollment process could be via a third-party registry website (i.e., any arbitrary website, as implemented in the example code below) or a SMART on FHIR application.

  3. Test the Workflow:

    • Simulate the workflow using the CDS Hooks Sandbox to observe how patient-view hooks trigger CDS cards for the appropriate patient cohort (e.g., pediatric patients with retinoblastoma).

  4. Additional Steps to Refine CDS Selectivity:

    • Integrate Additional Criteria: Modify the CDS service to include additional eligibility criteria, such as patient age, to refine the selectivity of CDS interventions. For instance, include logic to identify only retinoblastoma patients within a certain age range (e.g., older than 1 month and less than 18 years of age).

4 Approach & Solution

After ensuring you have access to a test FHIR server with the synthetic data described above, create a web application that responds to the following endpoints:

  1. GET /cds-services, which provides a list of available CDS Service endpoints to the EHR like this:

    {
  services: [
    {
      id: "retinoblastoma",
      hook: "patient-view",
      title: "Retinoblastoma CDS Service",
      description: "Provides decision support for retinoblastoma cases.",
      prefetch: {
        conditions: "Condition?patient={{context.patientId}}",
        patient: "Patient/{{context.patientId}}"
      }
    },
  ],
}

    Multiple services values can be included if the server supports more than one CDS Service.

  2. POST /cds-services/retinoblastoma, which is the CDS Service that runs when the patient-view hook is called.

    The request body to this endpoint will include information on the hook itself, the context (e.g., the patient’s id for a patient-view hook), and any prefetch data. The CDS Hooks documentation provides an example.

    This endpoint contains the business logic for the CDS hook. For this use case, this includes identifying when a given patient meets the criteria for displaying the retinoblastoma card: do they have a Condition resource instance with the retinoblastoma SNOMED code (19906005) and meet the age criteria?

    If the patient meets the criteria, the appropriate card(s) are returned in JSON format. For example:

    [
  {
    summary: "Enrollment Link",
    indicator: "info",
    detail:
      "This patient is diagnosed with retinoblastoma. Please consider referring them to the retinoblastoma recruitment registry if their parents or guardians are interested in being contacted about research opportunities.\n\nClick below to guide the patient’s family through the signing up for the Retinoblastoma Research Recruitment Registry.",
    source: {
      label: "Enrollment App",
    },
    links: [
      {
        label: "Enroll Patient →",
        url: "http://example.com/enrollment-smart-app",
        type: "smart"
      }
    ]
  },
]

    Multiple cards can be returned if needed. If you want to link to a URL for a non-SMART on FHIR application, use type: "absolute" instead of type: "smart".

There are a multitude of approaches for implementing such a server. An example is provided on GitHub implemented using JavaScript. To run the example:

  1. Clone the GitHub repository locally.

  2. Unzip the synthetic_data/cds-retinoblastoma/database-cds-retinoblastoma.zip file and move the enclosed h2.mv.db file into a new folder called hapi_db. This .db file is the pre-loaded database for the HAPI FHIR server that includes the synthetic data for this use case.

    Run the following Docker command to start HAPI with this database:

    docker run -it -p 8080:8080 -v ${PWD}/hapi_db:/usr/local/tomcat/target/database smartonfhir/hapi-5:r4-empty

    Once the server has started, you should be able to get a JSON response with this cURL command:

    curl localhost:8080/hapi-fhir-jpaserver/fhir/Patient/86

    The output should look like:

    {
  "resourceType": "Patient",
  "id": "86",
  "meta": {
    "versionId": "1",
    "lastUpdated": "2024-09-27T14:14:10.772+00:00",
    "source": "#nEQKUSDEs9Q1J8i8",
    "profile": [ "http://hl7.org/fhir/us/core/StructureDefinition/us-core-patient" ]
  },
  ...
}

  3. Start the CDS Service example using the following Docker command:

    cd example_cds_hook_service
docker build -t example-cds-hooks-service-image .
docker run -it -p 3000:3000 -v ${PWD}:/usr/src/app example-cds-hooks-service-image

    This will mount the example_cds_hook_service folder inside the Docker container so any changes to app.js will be reflected immediately. See this README for more information.

  4. Go to the following URL to launch the CDS Hooks Sandbox using your localhost HAPI server and CDS Service:

    https://sandbox.cds-hooks.org/?fhirServiceUrl=http%3A//localhost%3A8080/hapi-fhir-jpaserver/fhir/&serviceDiscoveryURL=http%3A//localhost%3A3000/cds-services&patientId=86

    The patientId value (86) refers to a synthetic patient who meets the criteria for the retinoblastoma CDS Card described above. You should see the card displayed:

    For a patient who does not meet the criteria, try this URL:

    https://sandbox.cds-hooks.org/?fhirServiceUrl=http%3A//localhost%3A8080/hapi-fhir-jpaserver/fhir/&serviceDiscoveryURL=http%3A//localhost%3A3000/cds-services&patientId=642

    You should see the CDS Hooks Sandbox without the retinoblastoma card for this patient.

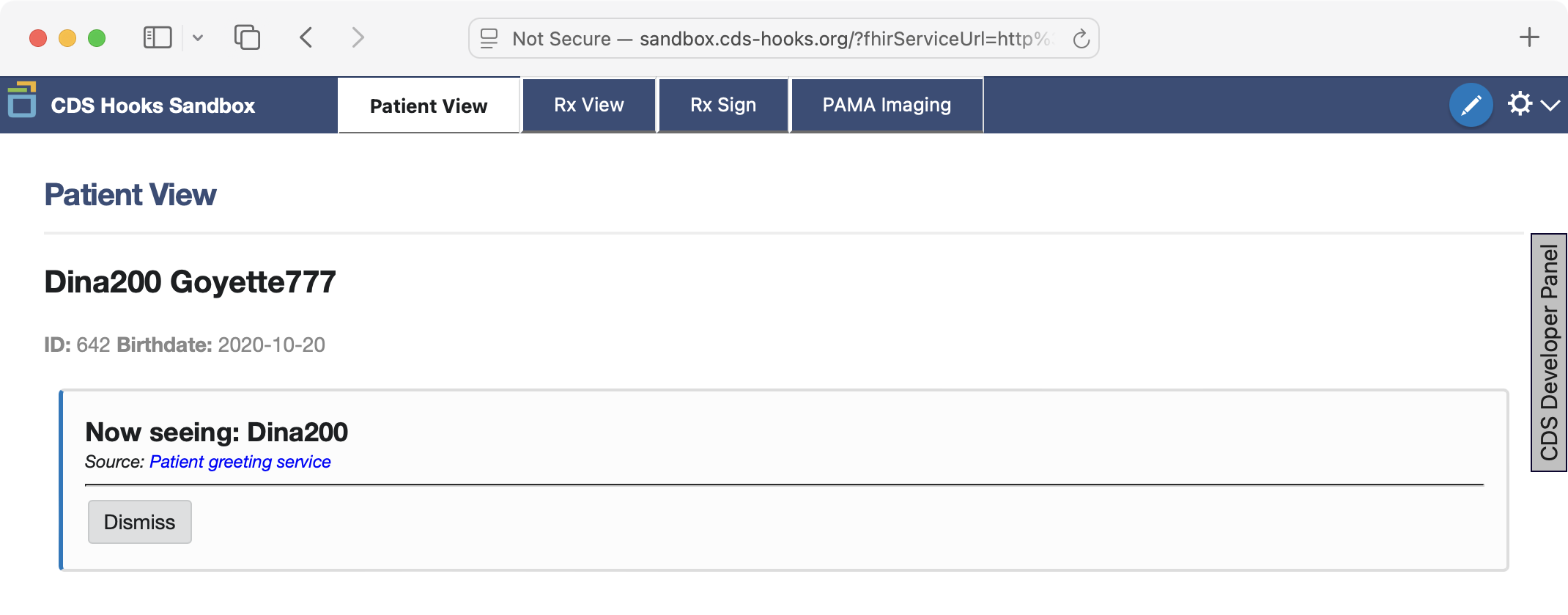

    Screenshot showing patient record in the CDS Hooks Sandbox without the retinoblastoma CDS Hook card displayed.

5 Other Research Applications

This use case showcases just a fraction of what CDS Hooks can offer to FHIR research application developers. By leveraging different types of hooks, such as the patient-view used above or hook types like encounter-start hooks, developers can achieve a high degree of flexibility in integrating clinical decision support (CDS) into various points of the clinical workflow. Here are some additional ways CDS Hooks can further enhance research application development:

Tailored User Interaction

  • Dynamic Card Content: Implement logic in your CDS service to dynamically generate content on decision support cards based on real-time patient data. For example, if a patient matches the specific eligibility criteria for a clinical trial (e.g., age, diagnosis, comorbidities), the CDS card can display tailored information about the trial, including eligibility requirements, study location, and contact details. This dynamic approach allows for more personalized and contextually relevant prompts, improving the likelihood of clinician engagement.

Enhancing User Engagement and Feedback

  • User Feedback Mechanism: Integrate a mechanism within the CDS cards that allows clinicians to provide feedback directly from the EHR interface. For instance, clinicians can mark whether the decision support was useful, not relevant, or suggest improvements. This feedback loop can be invaluable for iteratively refining the CDS service and enhancing the relevance and accuracy of future interventions. It also fosters a sense of collaboration between the developers and end-users, leading to a more user-centered design.

  • Track Engagement Metrics: Implement analytics to collect data on CDS card interactions, such as display frequency, click-through rates, and subsequent actions taken by clinicians (e.g., initiating a research registry enrollment). By analyzing these engagement metrics, developers can assess the effectiveness of the CDS interventions, identify patterns of use, and make data-driven decisions for optimizing the CDS service. This continuous feedback process ensures that the decision support system evolves to better meet clinician needs and improve patient care.

Advanced Considerations for Research Integration

  • Condition-Specific Hooks: Beyond the patient-view hook, explore the use of condition-specific hooks such as order-select or order-sign hooks. These hooks allow for CDS interventions at the moment of clinical decision-making, such as when a clinician is placing an order for a medication or test. For example, an order-sign hook could be used to prompt a clinician to consider enrolling a patient in a research study before finalizing a treatment order.

  • Contextual Data Integration: Utilize the context provided by hooks, such as encounter information, patient demographics, and clinical context, to deliver highly specific and actionable CDS interventions. For instance, the encounter-start hook can be used to identify eligible patients for a study based on the reason for their visit, ensuring that research opportunities are presented at the most relevant clinical moments.

Leveraging FHIR Resources

  • Advanced FHIR Queries: CDS services can perform advanced FHIR queries to gather detailed patient information, such as lab results, medication history, and imaging reports. These queries can be used to enrich the decision support content and provide clinicians with a comprehensive view of the patient’s status, enhancing the quality of the CDS intervention.

  • Patient-Specific Interventions: Use FHIR resources to tailor interventions based on patient-specific factors, such as genetic markers, social determinants of health, or prior treatment responses. For example, a CDS card could suggest a clinical trial based on a patient’s genetic profile, leveraging FHIR Genomics resources to identify potential matches for precision medicine studies.

By exploring the capabilities and potential use cases of CDS Hooks, FHIR research application developers can create more sophisticated and effective tools to support clinical research. These tools not only streamline the integration of research into clinical practice but also ensure that patients receive the most current and personalized care options. As you continue to develop and refine your CDS services, keep these considerations in mind to maximize the impact of your clinical decision support and research efforts.
